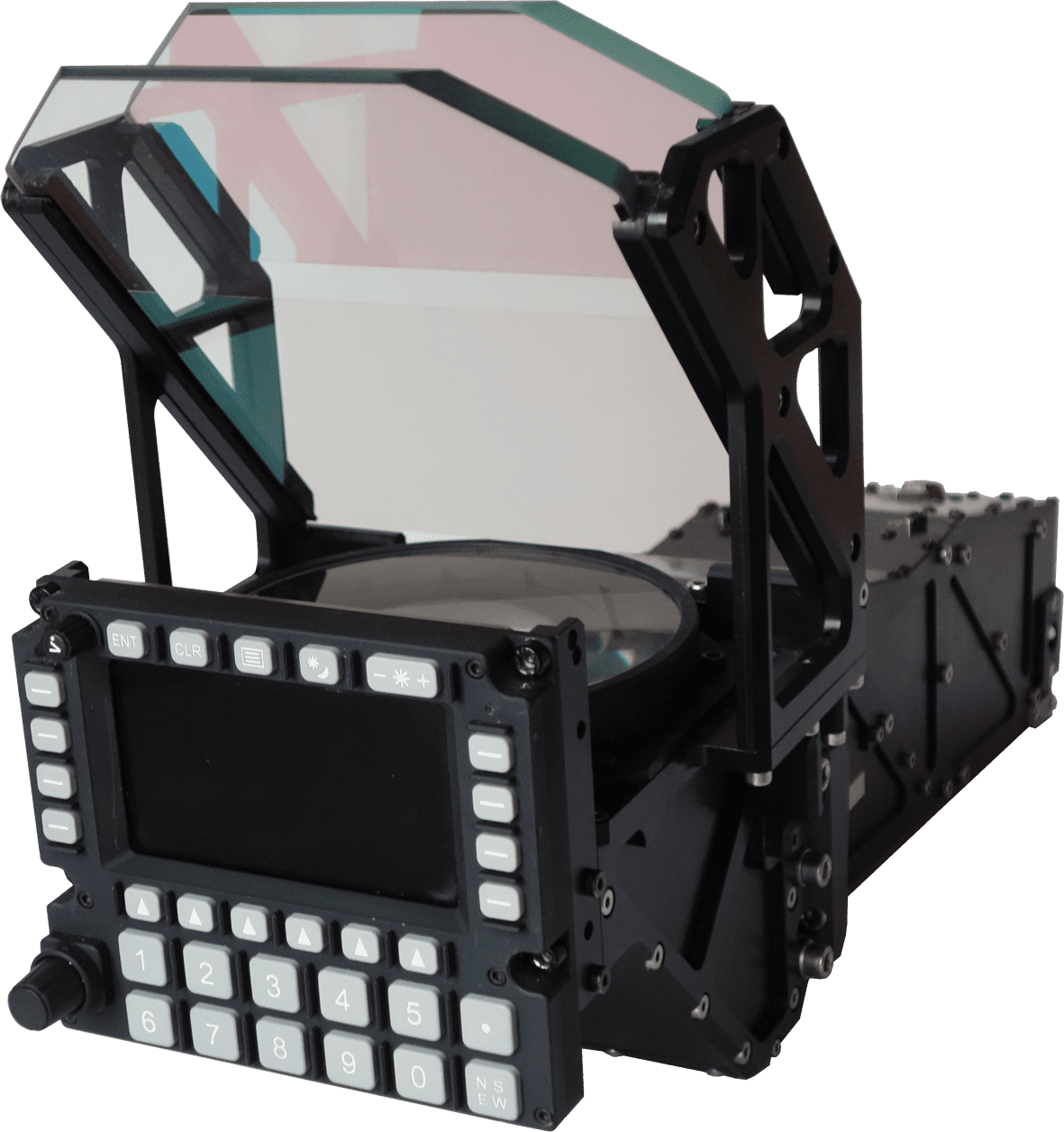

Speel’s Pilot Display Unit (PDU-39) is a fully digital, raster-based Head-Up Display (HUD) with a 23° total field of view. The unit features continuous built-in-test for instantaneous system status monitoring. The up-front control panel (UFCP) such as the one featured here* is a separate LRU that mounts on the PDU-39 and connects electrically to Speel’s MP-39 Mission Computer to provide control functions of the PDU-39 such as brightness and displayed HUD modes. The PDU-39 unit is supplied as a single LRU and designed for rack-mounting, thus allowing for easy interchangeability and mechanical alignment, and connects to onboard power and avionics systems via a single Mil-specs connector located at the back of the unit.
PDU-39 Technical Specifications:
| Dimensions (w/h/l): | 192 x 354 x 572 (mm) |
| Weight: | < 9 kg (UFCP as seen on photo not included) |
| Power supply: | 18V ÷ 33V / 28VDC Typical per MIL-STD-704E |
| Power consumption: | < 70W max. @ full brightness level |
| Operating temp. range: | -40 °C ÷ +60 °C |
| Video input interface: | HD-SDI |
| Total Field of View (TFOV): | 23° |
| Brightness: | > 3500 ftL (valid for a 2-pixel line thickness) |
| Contrast: | > 1.35:1 (against 10,000 ftL ambient) valid for a 2-pixel line thickness |
| Angular resolution: | 0.582 to 0.600 mrad per pixel |
| Eye motion box: | 140 x 50 mm (HxV) |
| MTBF: | > 10 000 hours |
* The UFCP featured in the PDU photo above is the Borsight’s Universal Management Unit (UMU). For UMU’s technical data, please visit Borsight, Inc. website at https://www.borsight.com.
